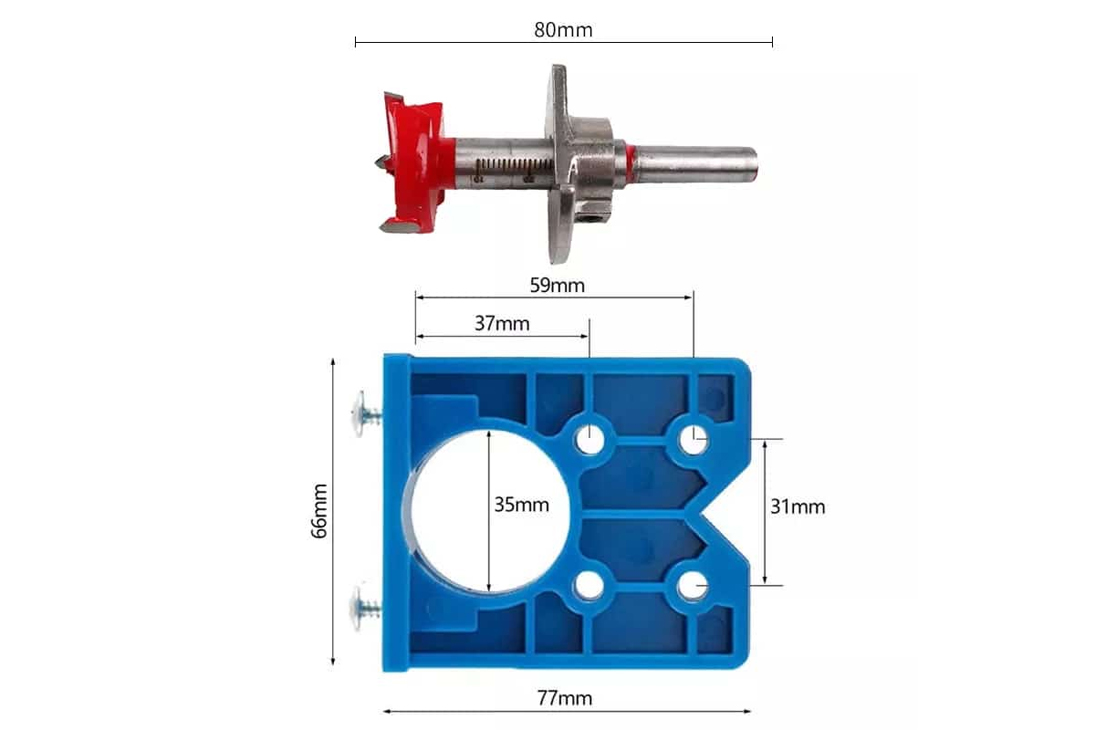

CUPBOARD CONCEALED HINGES LOCATOR JIG SET 35MM
|Dimensions||80 × 76 × 10 cm|
1.35mm hinge hole locator
2. Improved drilling accuracy and reduced error costs
3. Alloy material rotating head, sharp and durable, continuously cutting
4. Suitable for positioning and installation of furniture doors and wooden door hinges
5. Hinge punching locator, ABS plastic+alloy material, lightweight and portable, easy to operate
1. Determine the position of the hinge, with the short board facing upwards, fasten the screws on the edge of the wooden board, and drill hinge holes;
2. Draw the corresponding centerline on another board, with the short board facing downwards and the centerline aligned with the inverted triangle, and drill the hinge positioning hole;
3. Install the hinge.
Drilling jig for 35mm concealed hinges.
Made of strong, high impact polycarbonate.
Improved accuracy and less expensive mistakes.
Item type: Hinge Drilling Jig
Type: A, B
Main Size: (Approx.) 66x77mm
Hole Diameter(Approx.) : 35mm
1 x Hinge Drilling Jig
1 x Drill Bit
